Jazzy Carbon

Regular price
$2,539.00
Sale price
$2,539.00
Regular price
Shipping calculated at checkout.
Color:

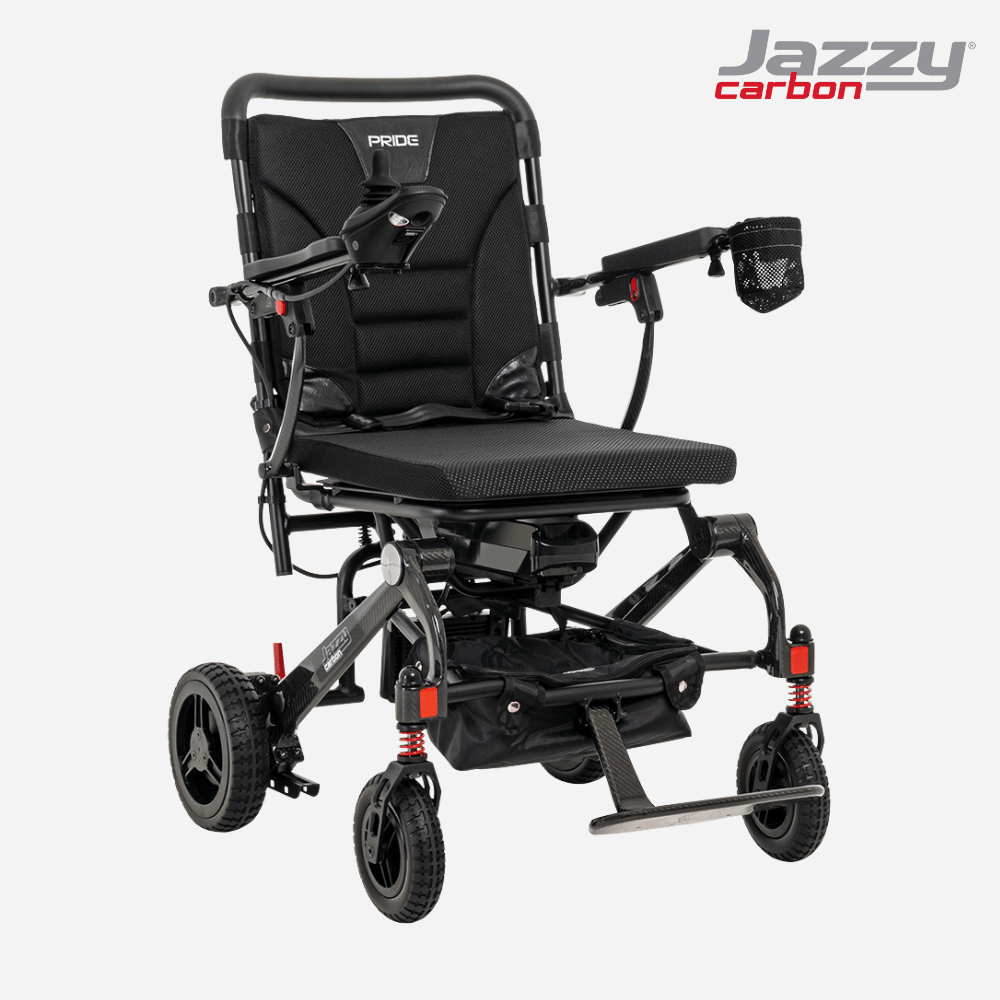

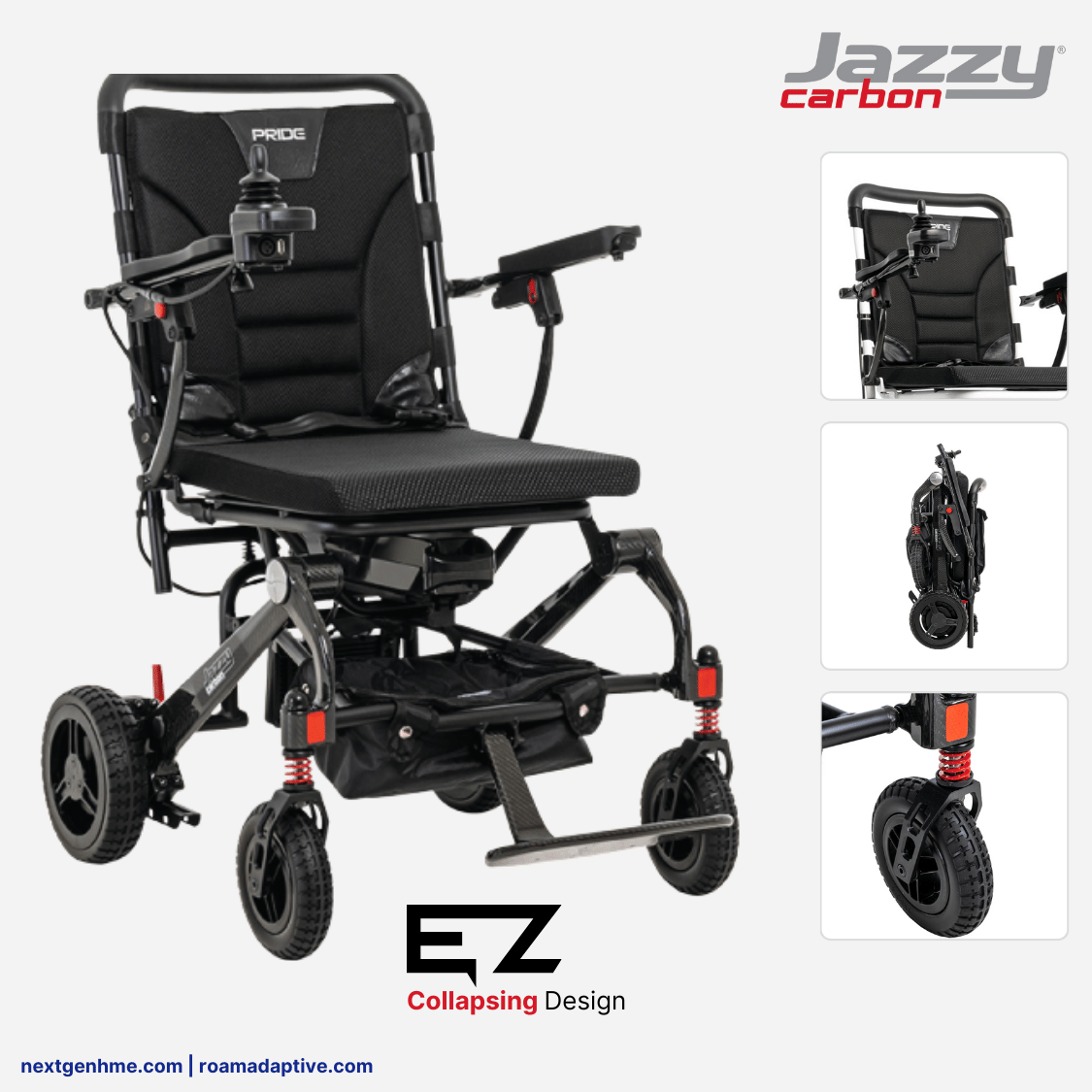

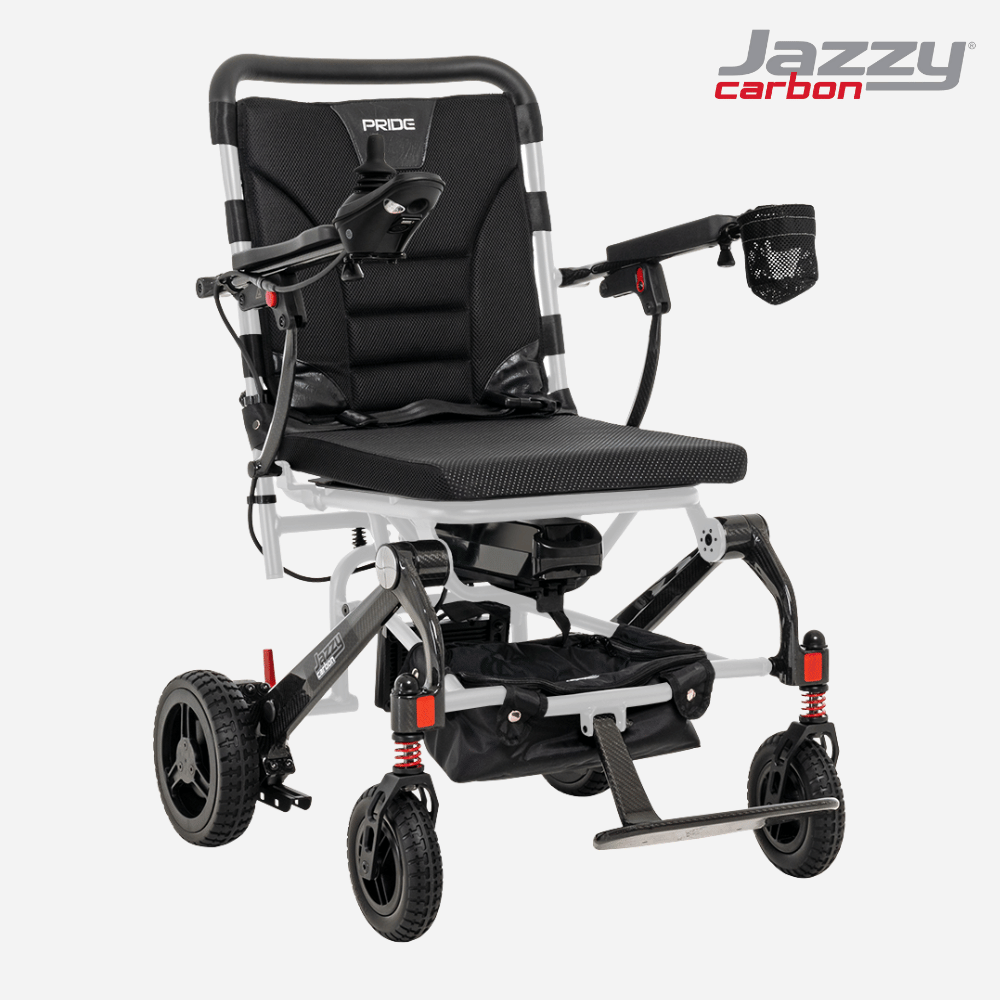

The Jazzy Carbon is the epitome of portable power. Crafted with a lightweight carbon fiber frame, this folding power wheelchair is designed for those who value both style and substance.

Key Features

  • Ultra-Lightweight at only 43.6 lbs

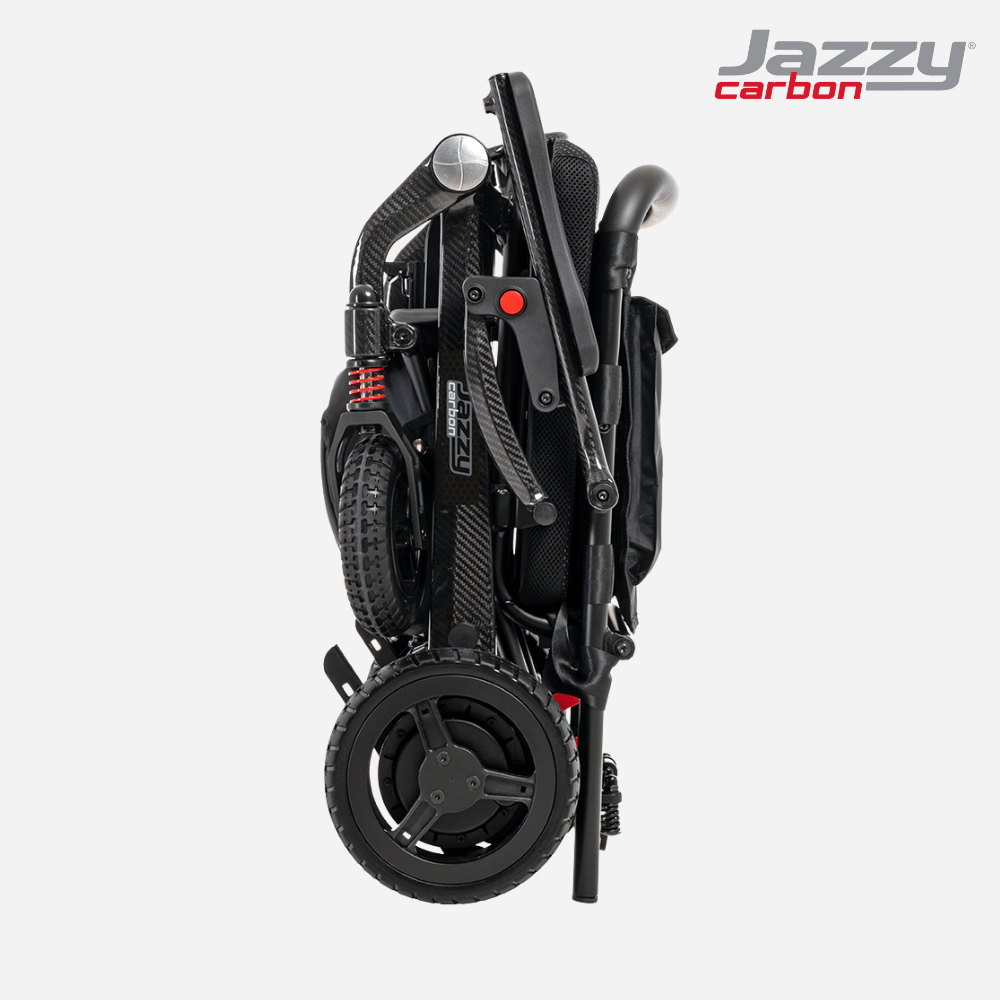

  • Compact Folding to 28.3”x12.2”x24”
  • 300 lb capacity
  • Powerful performance battery - up to 9.3 mile range
  • Suspension system
  • 3.7 MPH
  • Accessories: headrest, cup holder, cushion, and extra battery

✈️🔋Transport of this item on commercial aircraft is subject to federal regulations and airline policy.

Please consult your airline prior to your flight to ensure your Jazzy® Carbon and its lithium ion battery are permitted. ✈️🔋

Explore more products
  • 300 lb weight capacity
  • Removable joystick for transporting with built in USB charger.
  • Airline compliant lithium battery*.
  • Front suspension for a smooth ride.
  • Ultra-lightweight, carbon fiber frame specifically designed for traveling.

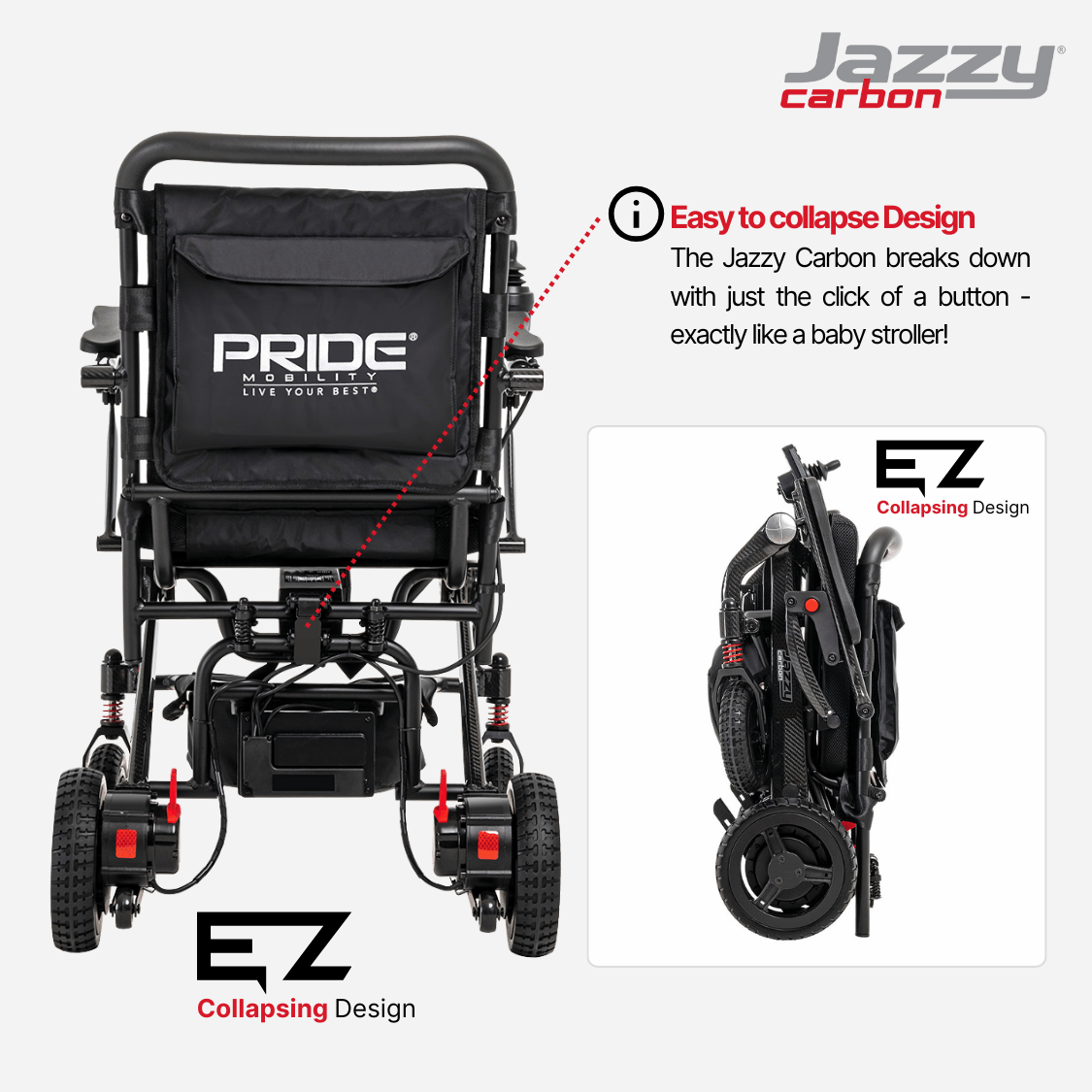

  • Compact base easily folds and unfolds for easy transport in a few easy steps.
  • Padded seat back with storage pocket and soft, removable seat cushion for all-day comfort.
  • Free-wheel levers to easily disengage the hand control allowing this lightweight power chair to be pushed like a manual chair.
  • Included under-seat storage and adjustable lap belt.
Contact Support

The Jazzy Carbon is the epitome of portable power. Crafted with a lightweight carbon fiber frame, this folding power wheelchair is designed for those who value both style and substance.

Key Features

  • Ultra-Lightweight: Weighing in at just 43.6 pounds, the Jazzy Carbon is a breeze to transport.
  • Compact Folding: Easily folds for convenient storage and travel.

Powerful Performance: Despite its size, the Jazzy Carbon delivers impressive speed and range.

Comfortable Ride: Enjoy a smooth and comfortable journey thanks to advanced suspension technology.

Weight and Dimensions

  • Carbon Weight Capacity: 300 lbs.
  • Maximum Speed: Up to 3.7 mph
  • Ground Clearance: 2 inches
  • Turning Radius: 24 inches
  • Overall Length: 37 inches
  • Overall Width: 24 inches
  • Seat-to-Floor Range: 20.25 inches with cushion, 18.75 inches without cushion
  • Front Casters: 7 inches solid
  • Drive Wheels: 8.5 inches solid
  • Total Weight with Batteries: 43.6 lbs.Heaviest Piece When Disassembled: 39.6 lbs. (base)
  • Standard Seat: 17 inches x 17 inches black foam

Performance

  • Suspension Type: Front suspension
  • Range Per Charge: Up to 9.3 miles
  • Motor Output: 24v/250W brushless motors
  • Braking System: Regenerative and electromechanical

Power

  • Battery Requirements: 24V 12AH (288WH) lithium-ion
  • Battery Charger: 2 amp, lithium-ion off-board

Warranty

  • Frame: Lifetime limited
  • Electrical Control/Lever System, Motor/Drive System, Bearing Sleeve, and Battery: 1-year limited
Contact Support

Warranty

  • Frame: Lifetime limited
  • Electrical Control/Lever System, Motor/Drive System, Bearing Sleeve, and Battery: 1-year limited
Contact Support
JAZZY CARBON

Key features

Suspension system

on the front casters reduces fatigue by providing absorption for smoother riding.

Easy use joystick

The Carbon has an easy to use joystick, able to mount left side or the right side.

Lightweight

carbon fiber frame makes transporting super easy. The total weight with batteries is 43 lbs.
FAA COMPLIANT | CRUISE COMPATIBLE | FITS INTO MOST TRUNKS

Travel with the Carbon

✈️🔋Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your Jazzy® Carbon and its lithium ion battery are permitted. ✈️🔋
