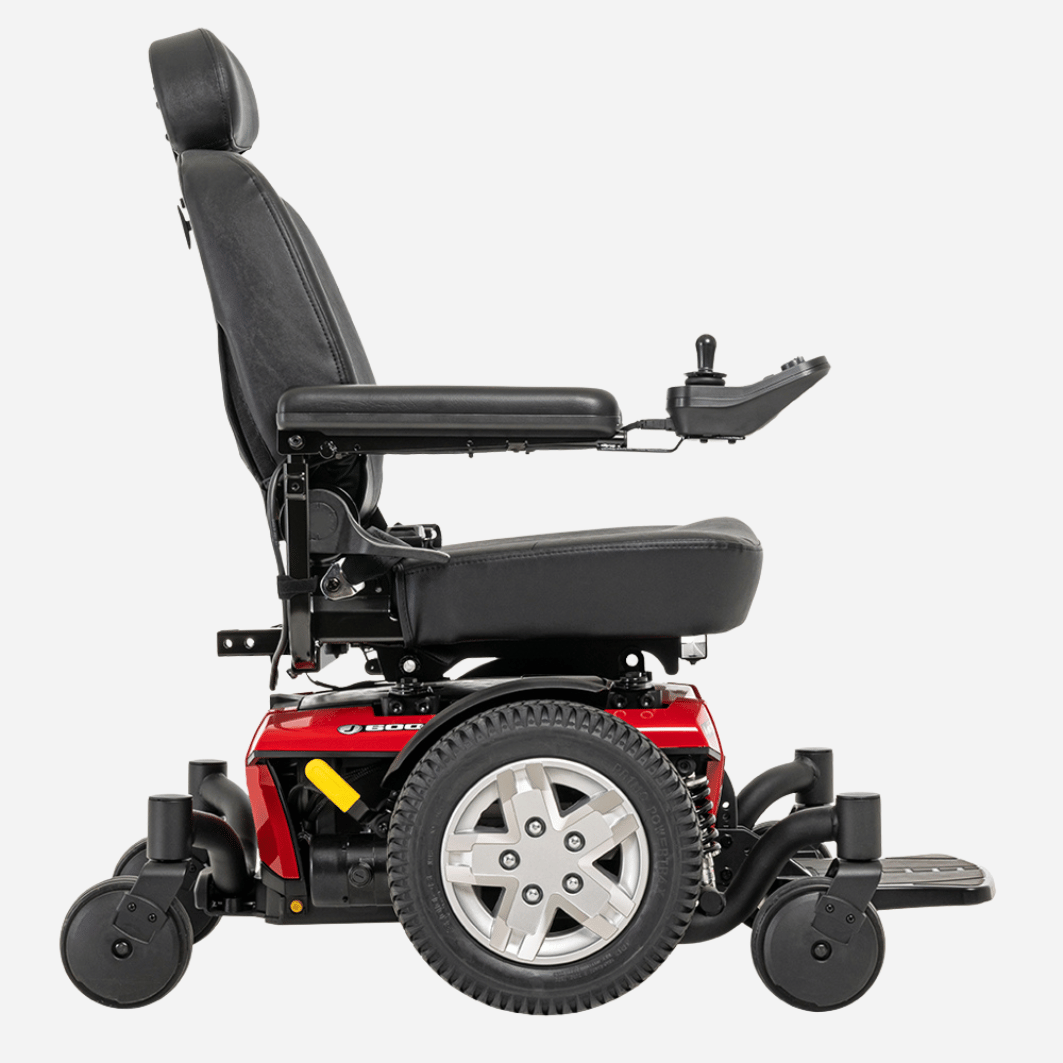

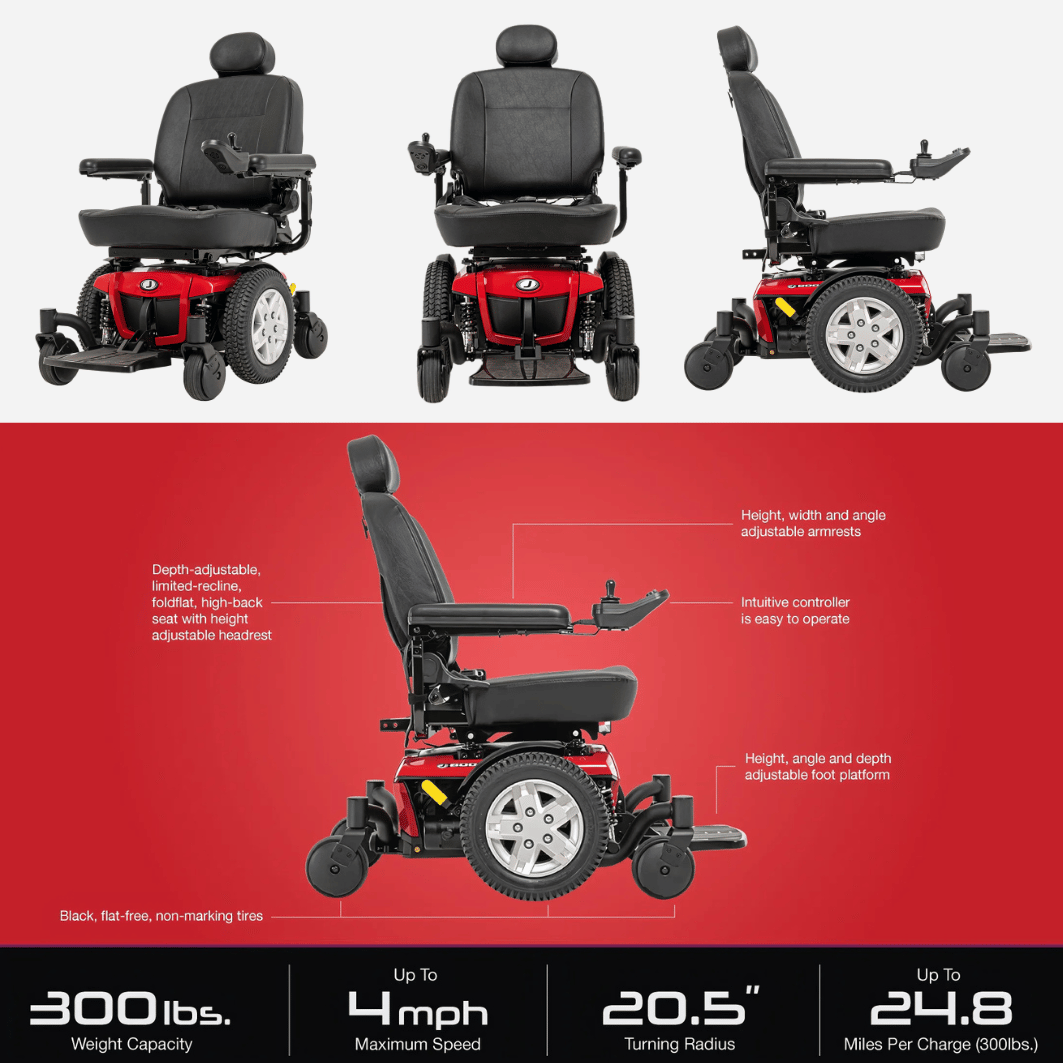

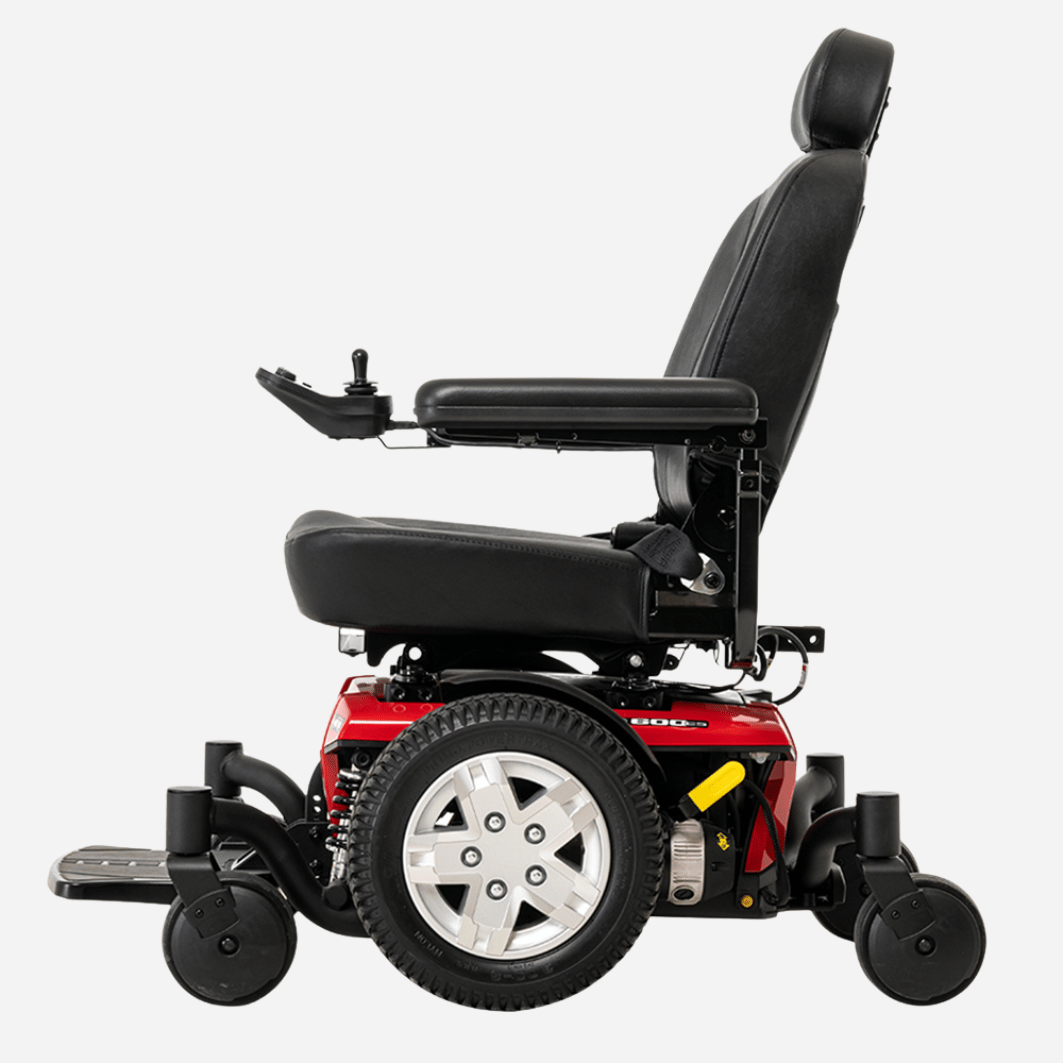

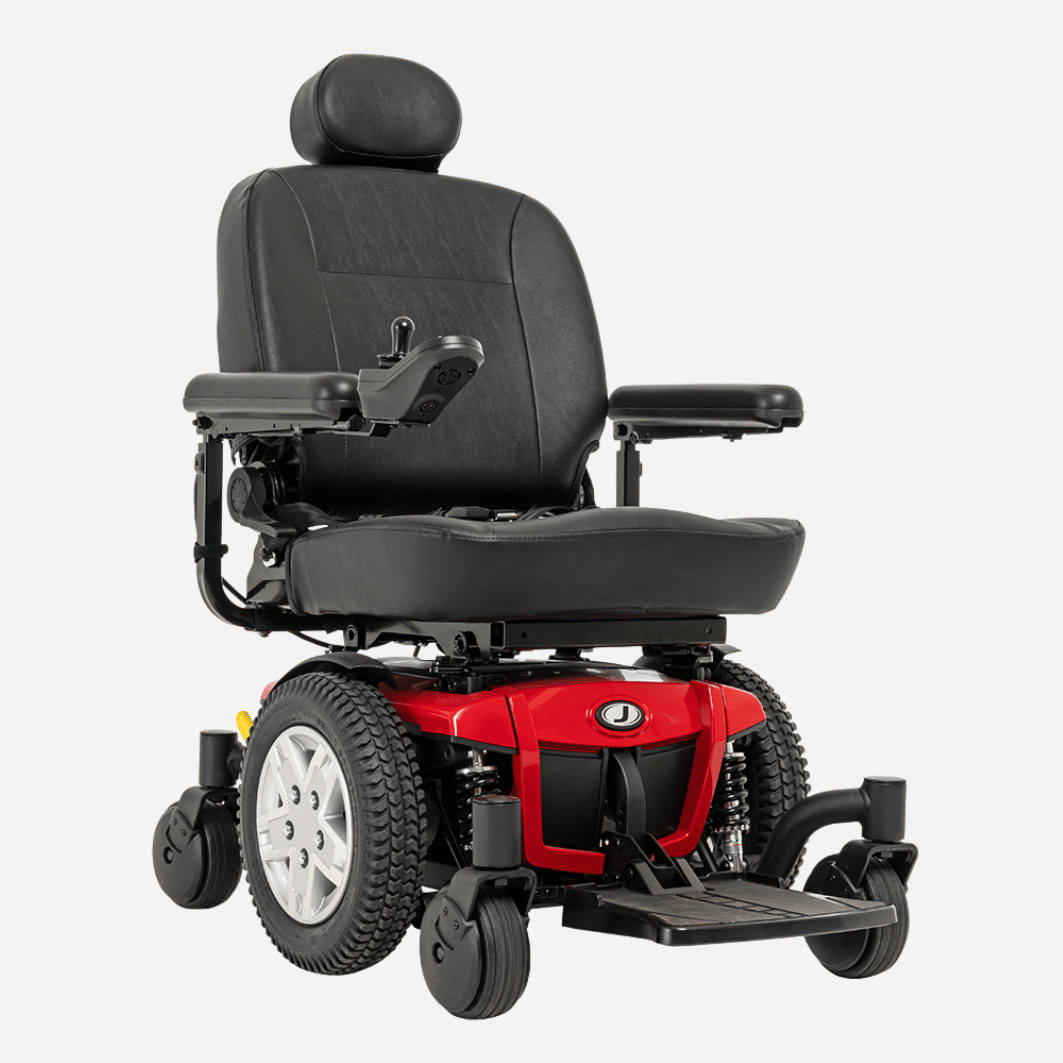

Jazzy 600 ES Power Wheelchair

The Jazzy® 600 ES features patented Mid-wheel 6® technology and Active-Trac® ATX Suspension for an extraordinary level of performance, maneuverability and the tightest turning radius in the Jazzy line.

Mid-wheel 6 technology incorporates ATX Suspension for extra stability with independent front casters that raise and lower as needed to compensate instantly for changes in terrain and ease of transitions.

The Jazzy 600 ES offers true all-around performance indoors and out, transitions curbs smoothly and is rated for climbing and aggressive performance, making it an excellent power chair choice.

Key features

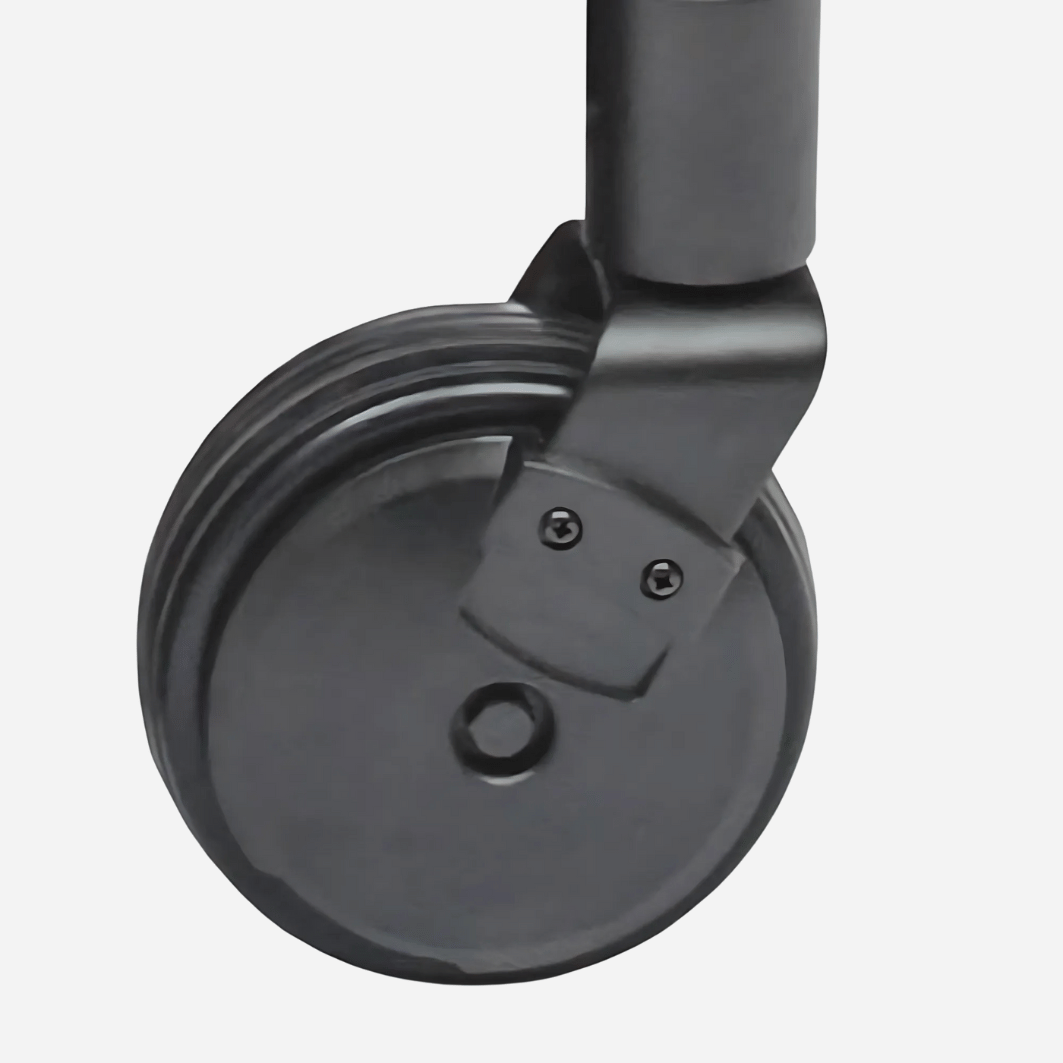

• OMNI-Casters (nylon, spherical-shaped casters) on front and rear to prevent wheel hang-ups
• Side-mounted, easily accessible freewheel levers

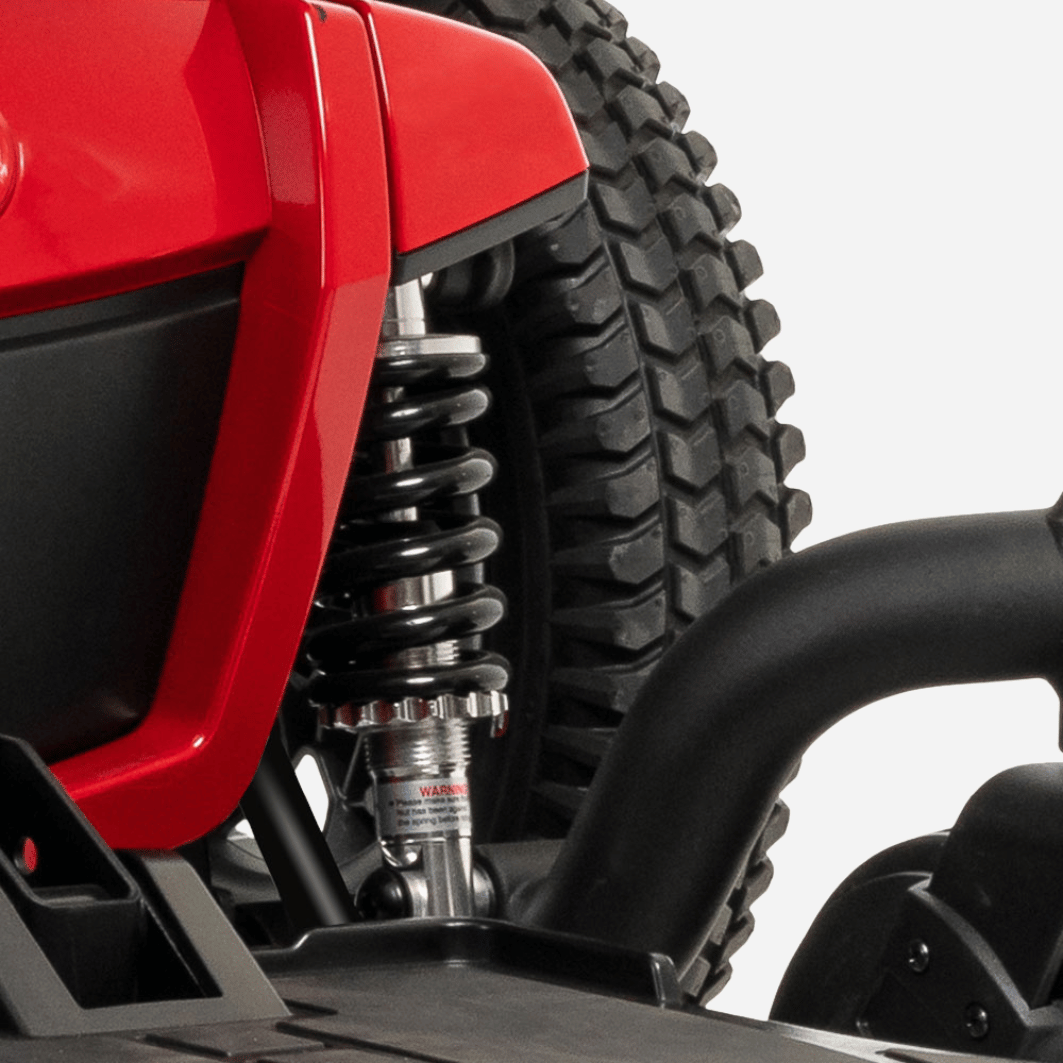

• Active-Trac® ATX Suspension for enhanced performance over more varied terrain
• Easy front access to batteries
• 300 lbs. weight capacity
• Up to 4 mph
• 20.5" turning radius
• Mid-Wheel 6® Technology
• Up to 24.8 miles per charge (300 lbs.)

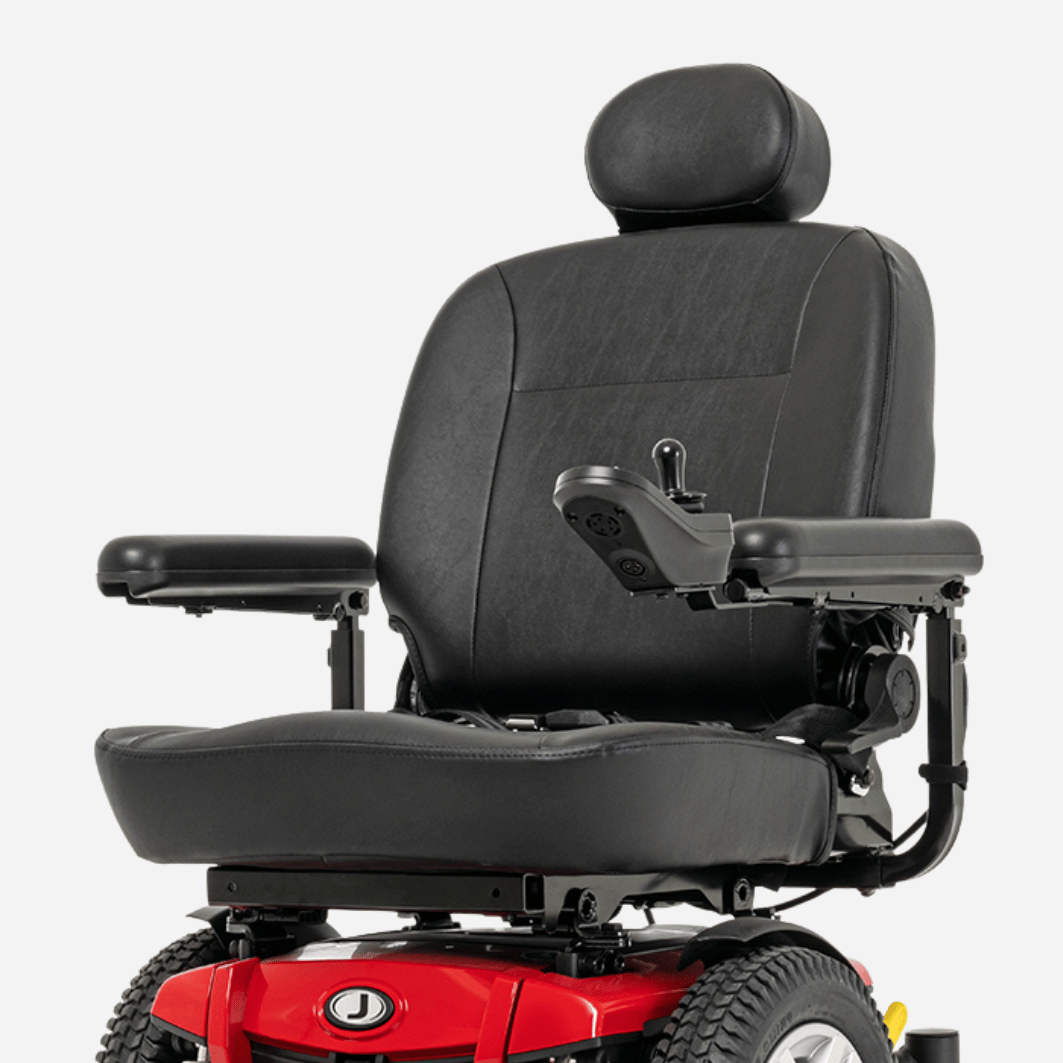

• Depth adjustable, limited recline high back seat
• In-line joystick mount
• Flip-up, height adjustable foot platform
• Black, flat-free, non-marking tires
• OMNI-Casters (nylon, spherical-shaped casters) on front and rear to prevent wheel hang-ups
• Side-mounted, easily accessible freewheel levers
• Active-Trac® ATX Suspension for enhanced performance over more varied terrain
• Easy front access to batteries

Highlights

• 300 lbs. weight capacity
• Up to 4 mph
• 20.5" turning radius
• Mid-Wheel 6® Technology
• Up to 24.8 miles per charge (300 lbs.)
• Depth adjustable, limited recline high back seat
• In-line joystick mount
• Flip-up, height adjustable foot platform
• Black, flat-free, non-marking tires
• OMNI-Casters (nylon, spherical-shaped casters) on front and rear to prevent wheel hang-ups
• Side-mounted, easily accessible freewheel levers
• Active-Trac® ATX Suspension for enhanced performance over more varied terrain
• Easy front access to batteries

Resources

• Jazzy® 600 ES (US)
• Jazzy® Power Chairs Catalog (US) Group 2 Power Chairs Catalog
• Jazzy® 600 ES Owner's Manual
• Jazzy® 600 ES Specifications
• Power Chair Consumer Safety Guide

• Weight Capacity: 300 lbs
• Turning Radius: 20.5"
• Overall Width: 24.5"
• Overall Length: 35.5" (without footplate) / 40.25" (with footplate)
• Maximum Speed: Up to 4.0 mph
• Ground Clearance: 2.75"
• Front Wheels: 6" solid OMNI-Casters
• Drive Wheels: 14" foam-filled
• Rear Wheels: 6" solid OMNI-Casters
• Drivetrain: Two-motor, mid-wheel drive
• Braking System: Regenerative and electro-mechanical
• Suspension: Active-Trac® (ATX) with Mid-wheel 6® Technology
• High-Back Seat (Max. Size): 20"W x 20"D
• High-Back Seat-to-Floor Range: 21" – 24"
• Synergy® Seating: 20"W x 20"D
• Synergy® Seat-to-Floor Range: 17.25" – 19.25"
• Standard Seat Weight: 18"W – 51.8 lbs / 20"W – 54 lbs
• Standard Seat Size: 18"W x 18"-20"D / 20"W x 18"-20"D
• Electronics: 50A Dynamic
• Battery Size (2 Required): 12 volt, NF-22
• Battery Weight: 37 lbs each
• Battery Charger: 5A off-board
• Per-Charge Range: Up to 24.8 miles (300 lbs) / Up to 29.5 miles (200 lbs)
• Weight of Heaviest Piece: 124 lbs
• Medicare Code Coverage: Group 2: Standard (K0822/K0823

Warranty

• Frame: 5-year limited
• Electronics: 13-month limited
• Drive Motors: 13-month limited
• Batteries: 13-month limited
